Verified model facts
- Sensing method
- Inductive, flush installation
- Sensing distance
- Rated operating distance 5 mm; assured operating distance 0 to 4.05 mm
- Output
- PNP, normally open, 3-wire DC
- Connection
- M12 x 1, 4-pin device connector
Product reference images
Reference photos identify NBB5-18GM50-E2-V1; they are not current-stock or order-inspection proof. Original availability and order terms are confirmed in the quotation.
Inductive proximity sensor
Pepperl+Fuchs NBB5-18GM50-E2-V1
M18 x 1 flush inductive sensor for metal detection: verified 5 mm rated distance, PNP normally open output and M12 4-pin connector.
Original-model quote or compatible replacement for India. Start with one question; quantity, city and photos can follow in the chat.
Price & availabilityChecked for your request
Delivery to IndiaConfirmed in the quote
Start hereModel question only
Original and compatible options are quoted separately. A replacement is not assumed to be interchangeable.
No form or photos needed to start. We will ask for the V1 label and connector details if needed before confirming technical fit.
Independent supplier, not an authorized distributor. Original availability is checked before quoting; compatible alternatives require a technical fit check.View company registration · registered since 2017
NBB5-18GM50-E2-V1
NBB5-18GM50-E2-V1: specifications and quotation details
Typical application fit
Metal-target detection where an M18 flush inductive sensor, 5 mm rated distance, PNP NO output and M12 4-pin connector match the machine.
Original / compatible boundary
Original availability is not assumed. A compatible model is proposed only after sensing method, output, voltage, cable or connector, mounting and the installed application are checked.

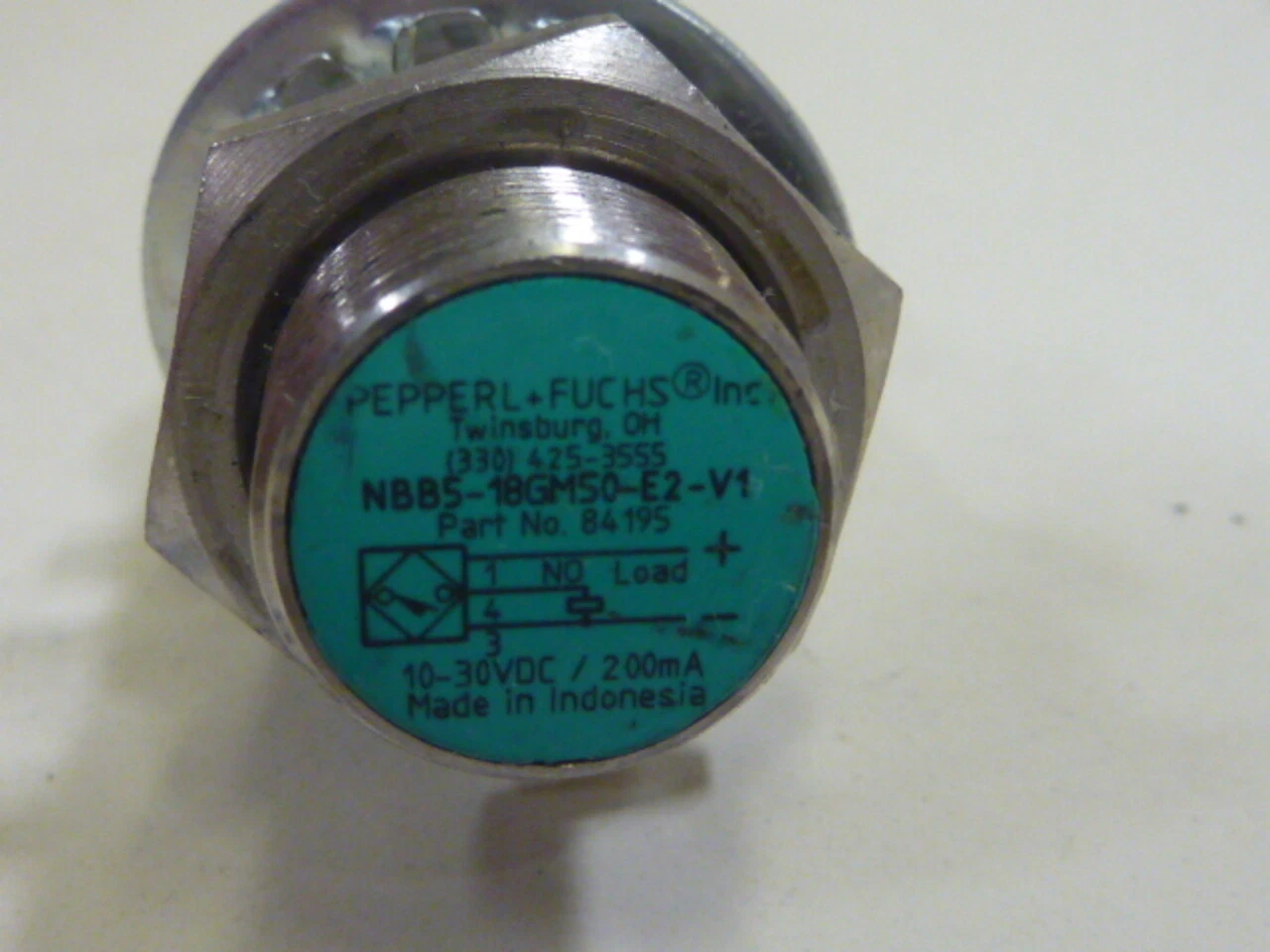

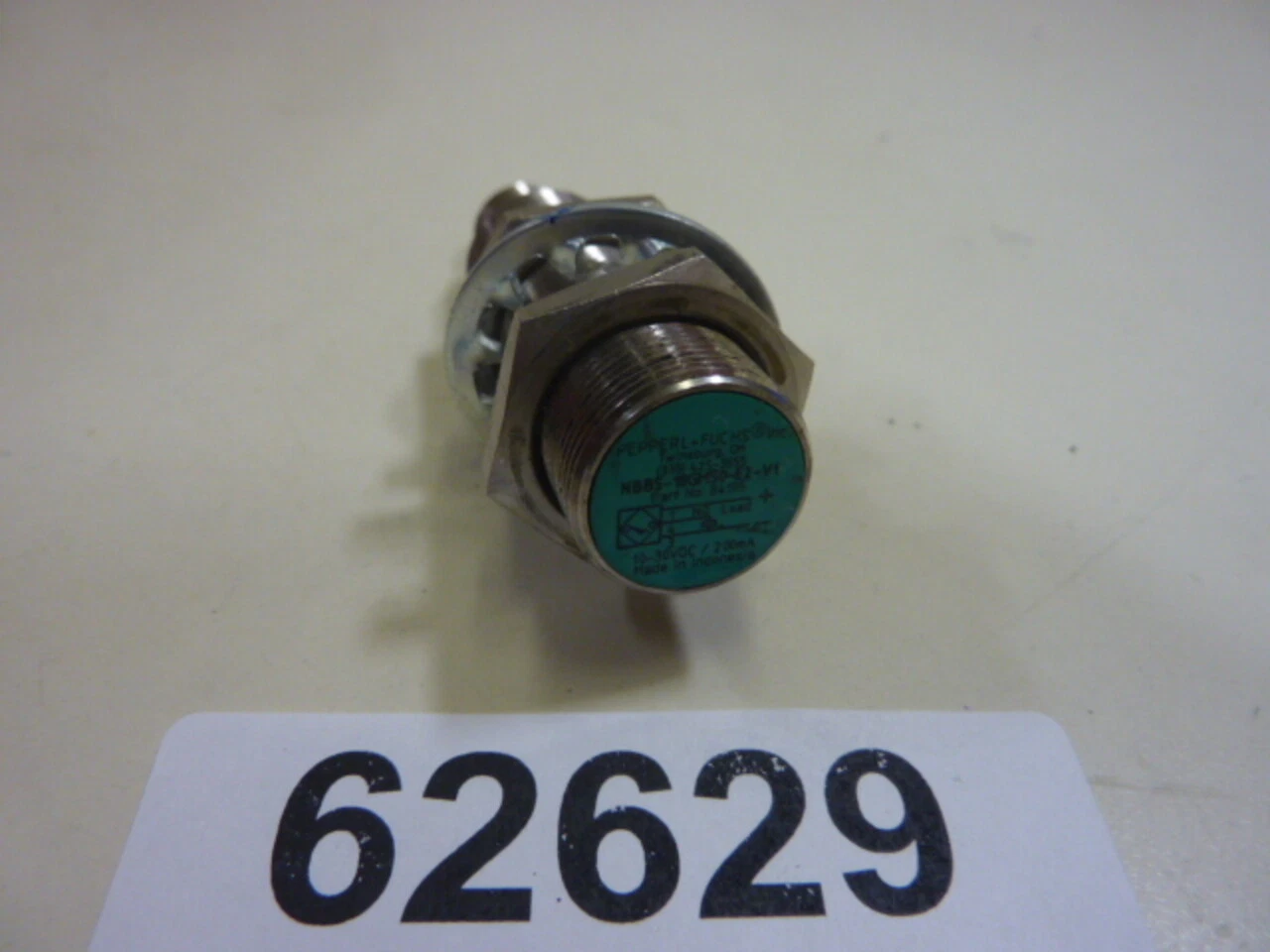

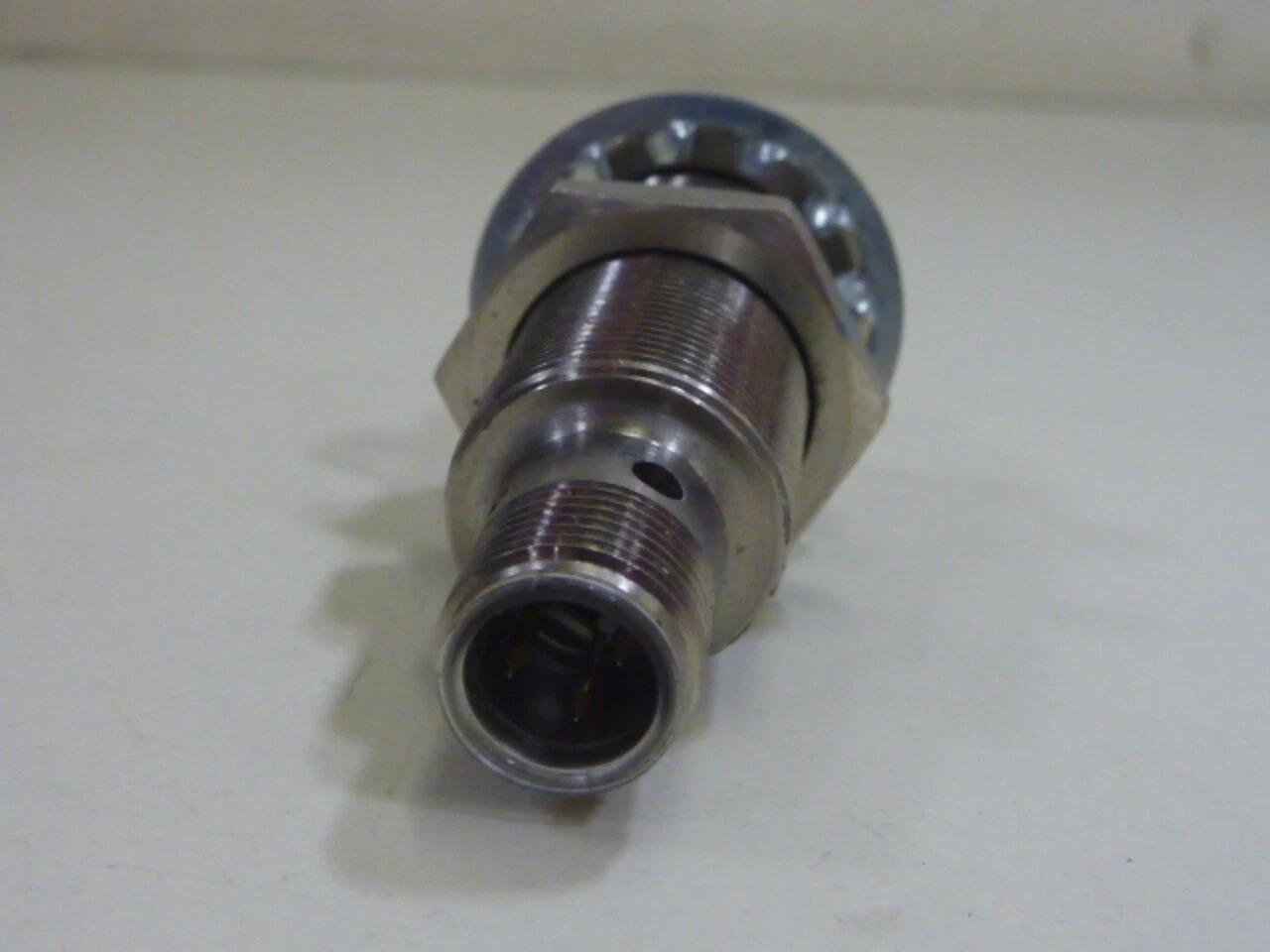

Product, label and packaging references
These three reference images identify the model; they do not certify stock, authenticity or warranty.
Details we can confirm in the chat
Start with the model. We can then confirm the following for an accurate offer:
- Quantity
- Delivery city / state and postcode
- Required delivery date
- Complete label and installed photo
- M12 connector photo and pinout
Sourcing and application references below are not proof of current stock. Company registration identifies the business, not a product certification.
Warehouse reference only; current availability is confirmed before quotation.
Packing method and export preparation are confirmed before shipment.
Application fit must be confirmed from the installed conditions.
Company RegistrationRegistered since 2017. View the legal name, registration code and business scope.
Want a quote for this model?Start with this model. Quantity and delivery details can follow in the chat.
Ask Price & Lead Time on WhatsApp
| Parameter | Value |
|---|---|
| Model | NBB5-18GM50-E2-V1 |
| Product type | Inductive sensor |
| Sensing method | Inductive, flush installation |
| Sensing range | Rated operating distance 5 mm; assured operating distance 0 to 4.05 mm |
| Output | PNP, normally open, 3-wire DC |
| Parameter | Value |
|---|---|
| Connection | M12 x 1, 4-pin device connector |
| Supply voltage | 6 to 36 VDC |
| Protection | IP65 / IP66 / IP67 / IP68 / IP69 |
| Installation | Flush M18 x 1 threaded mounting with nuts |
| Response | Switching frequency 0 to 1950 Hz |
Start with a question about Pepperl+Fuchs NBB5-18GM50-E2-V1. Quantity, delivery city and photos can follow in the chat. Before confirming a compatible option, J&V checks the E2-V1 suffix, PNP output, M12 connector, mounting and application; the cable version is a different model.
